Quick Sense(Qs-M4): Wall  Microwave Sensor 180 degree
Quick Sense(Qs-M4): Wall  Microwave Sensor 180 degree - Quick Sense Innovations

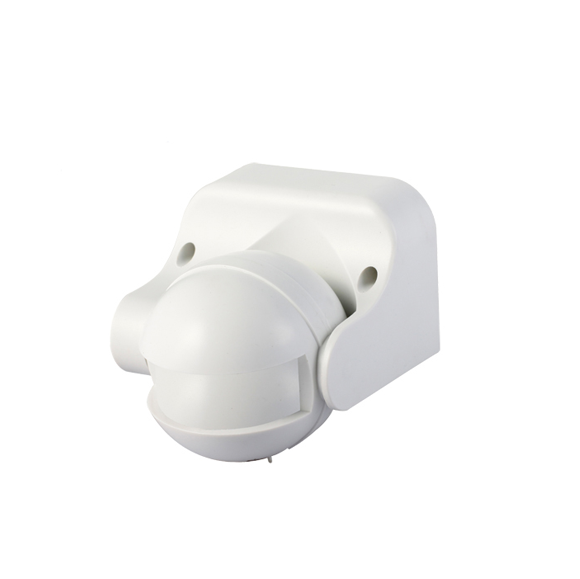

Quick Sense(Qs-M4): Wall Microwave Sensor 180 degree

Rs. 500.00 Rs. 2,000.00

  • The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.

    Function:

    Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.

    SENS adjustable: It can be adjusted according to using location; low sensitivity with only 1m (radius) for detection distance; High sensitivity could up to 8m (radius), it fits for large room.

    Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.

    Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 12min±1min.

    Power Frequency 50Hz (radius) adjustable
    Power Sourcing 110-130V/AC 2220V-240V/AC
    Ambient Light 3-2000LUX (adjustable)
    HF System 5.8GHz CW
    Time-delay min.:10sec±3sec Max.:12min±1min
    Installation Height 1.5m~3.5m
    Rated Load 220V-240V/AC 1200W (incandescent lamp) 300W (energy-saving lamp) 110-130V/AC 800W (incandescent lamp) 200W (energy-saving lamp)
    Power Consumption 0.9W
    Detection Range 360°/180
    Detection Distance 1-8m
    Detection Motion speed 0.6~1.5m/s

    Download Microwave Sensor EL-M0751 Manual
