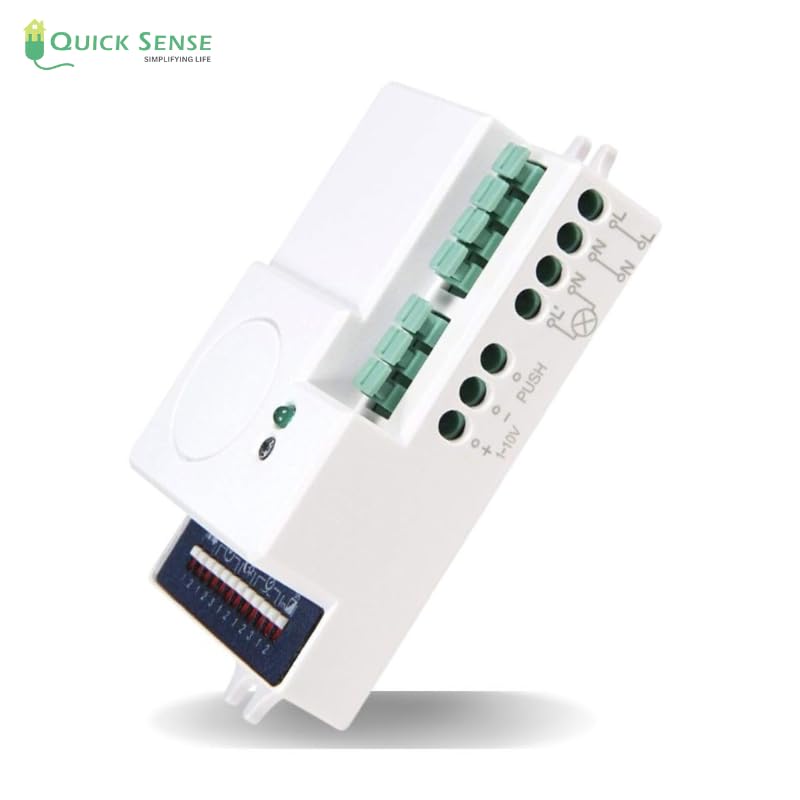

5.8 GHz microwave detection senses human movement through glass and thin walls with 360° coverage up to 15 metres for reliable indoor activation. Easy DIP‑switch controls let you tune hold time (5s–30min), sensitivity (10%–100%) and daylight cut‑off (2–2000 lux) to save energy. Three-stage dimming with manual override and DIN‑rail or surface mounting keeps lighting smart, flexible and low on running costs. Compact polycarbonate body (5×5×5 cm, 0.2 kg) fits ceilings or panels and works with LED drivers; a 6A fuse is recommended for safety.

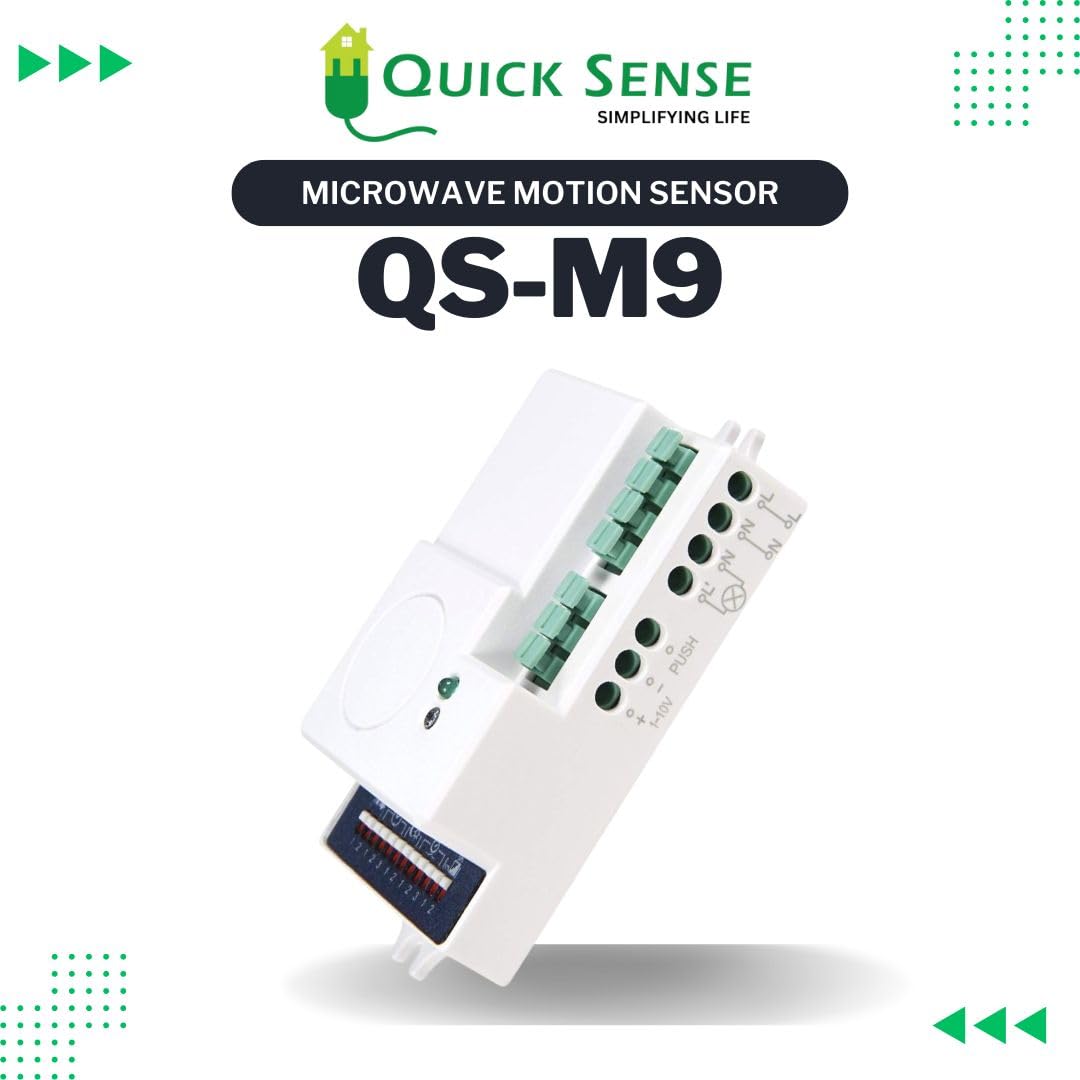

Model	QS-M9
Brand	Quick Sense
Sensor Technology	5.8 GHz microwave (Continuous Wave)
Coverage & Range	360° ceiling coverage; detection up to 15 metres (ceiling mounted)
Mounting & Recommended Height	Surface mount or DIN‑rail; recommended height 1.5–8 metres

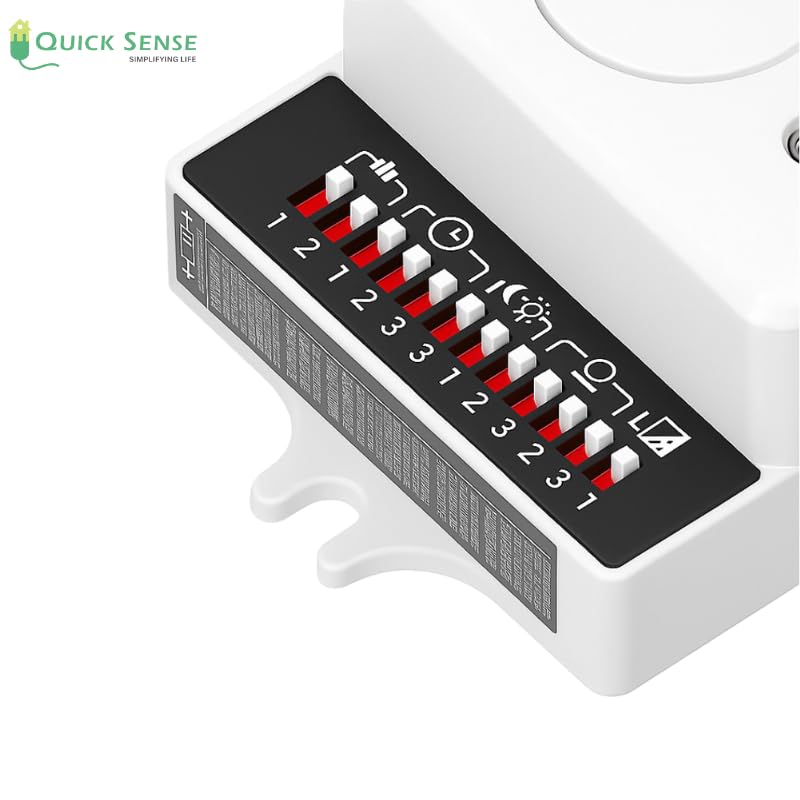

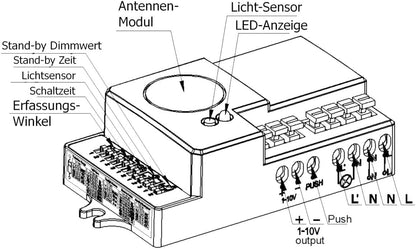

Adjustable Settings	Hold time 5s–30min; sensitivity 10%–100%; ambient light cut‑off 2–2000 lux
Dimming & Output	3‑stage dimming (100% → standby dim → OFF) with manual push‑switch override; compatible with LED drivers
Dimensions & Weight	5 × 5 × 5 cm; 0.2 kg
Power	110–130 V AC / 220–240 V AC, 50 Hz
Country of Origin	India
