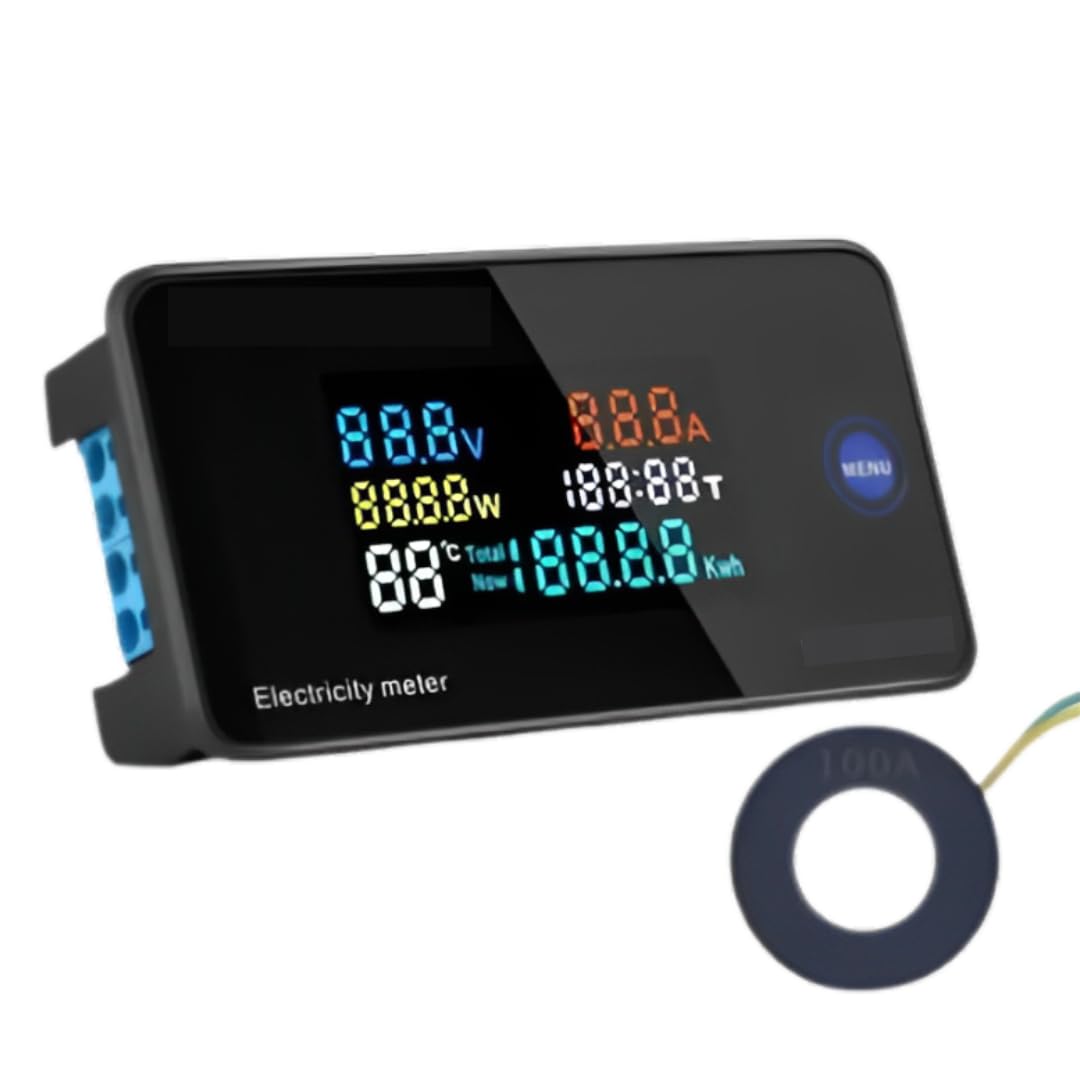

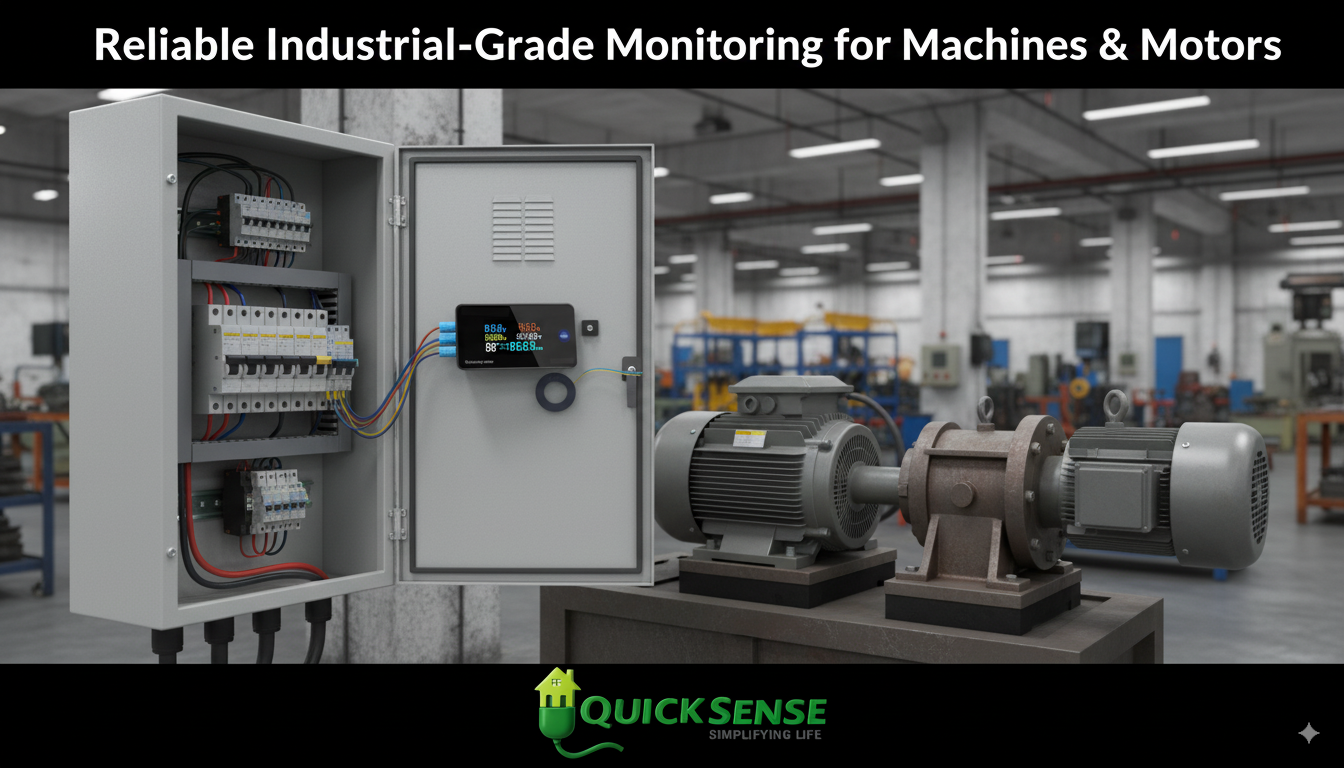

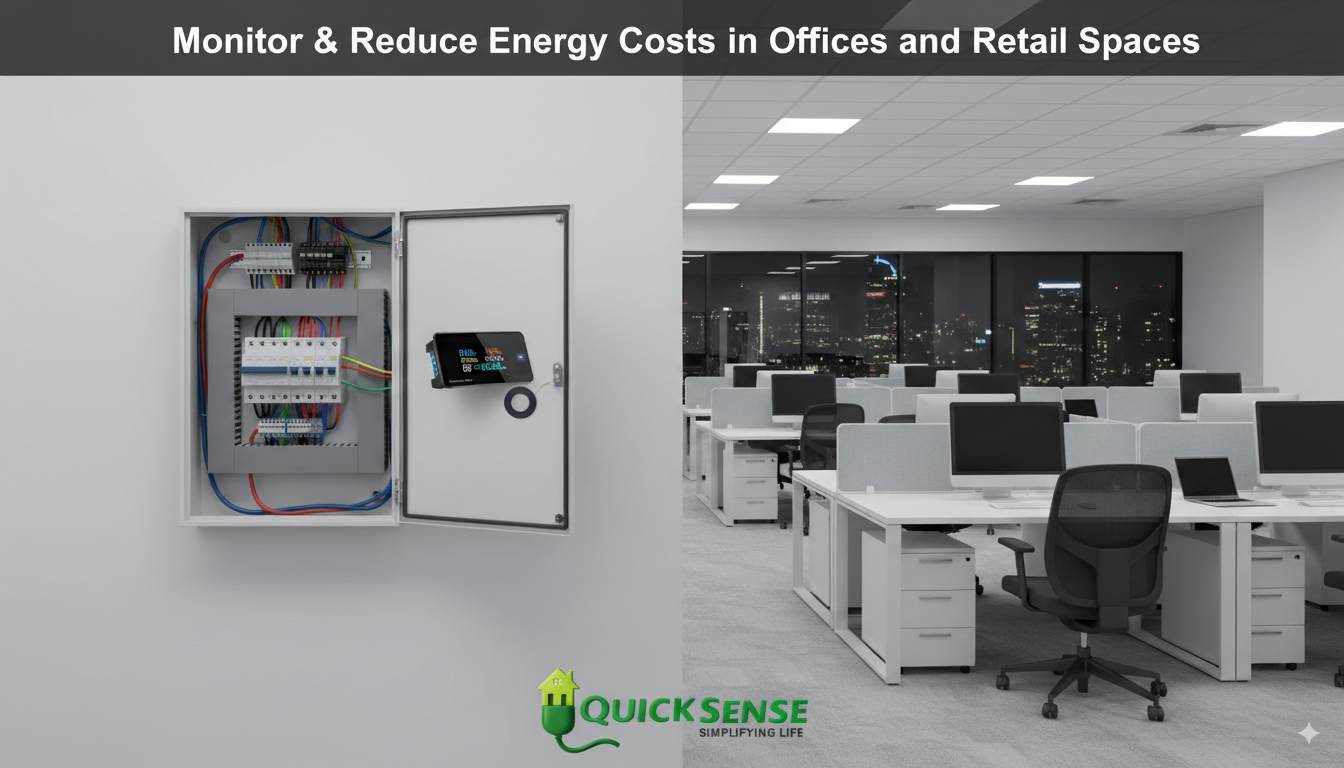

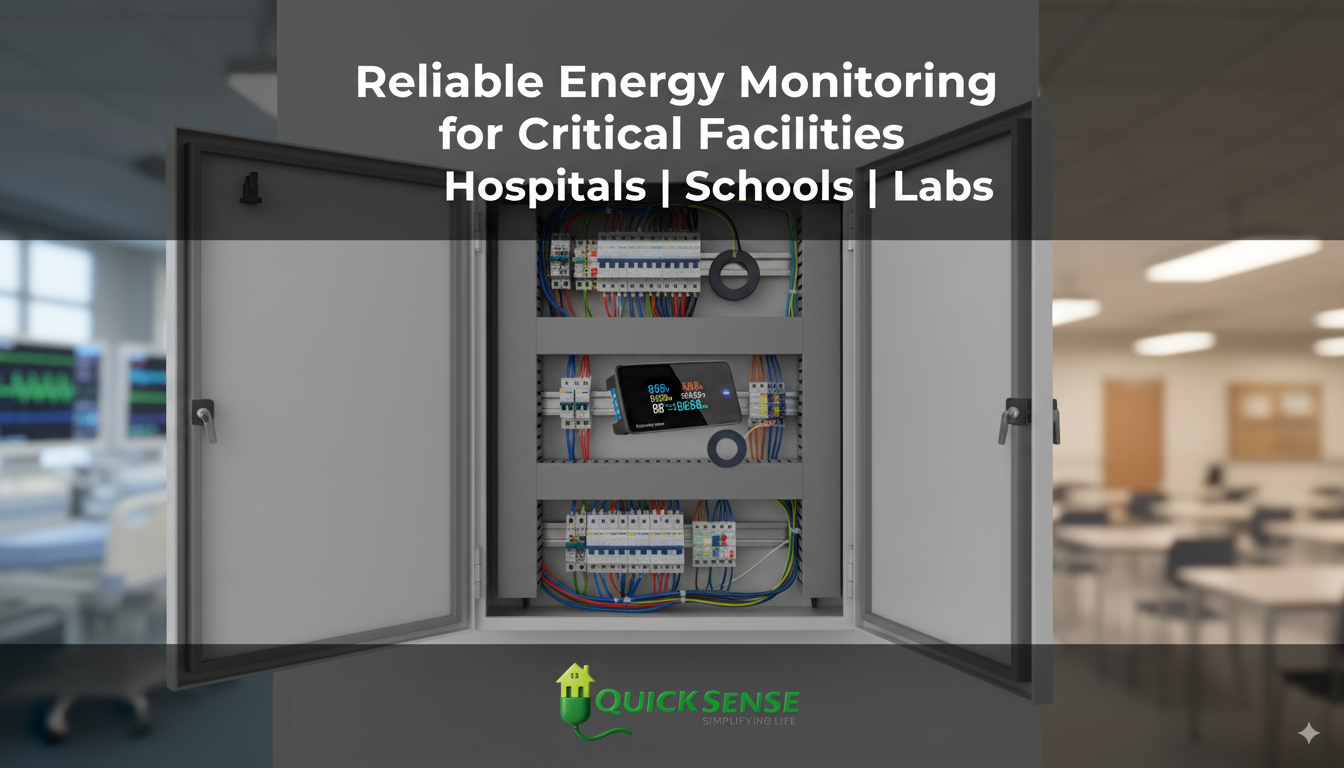

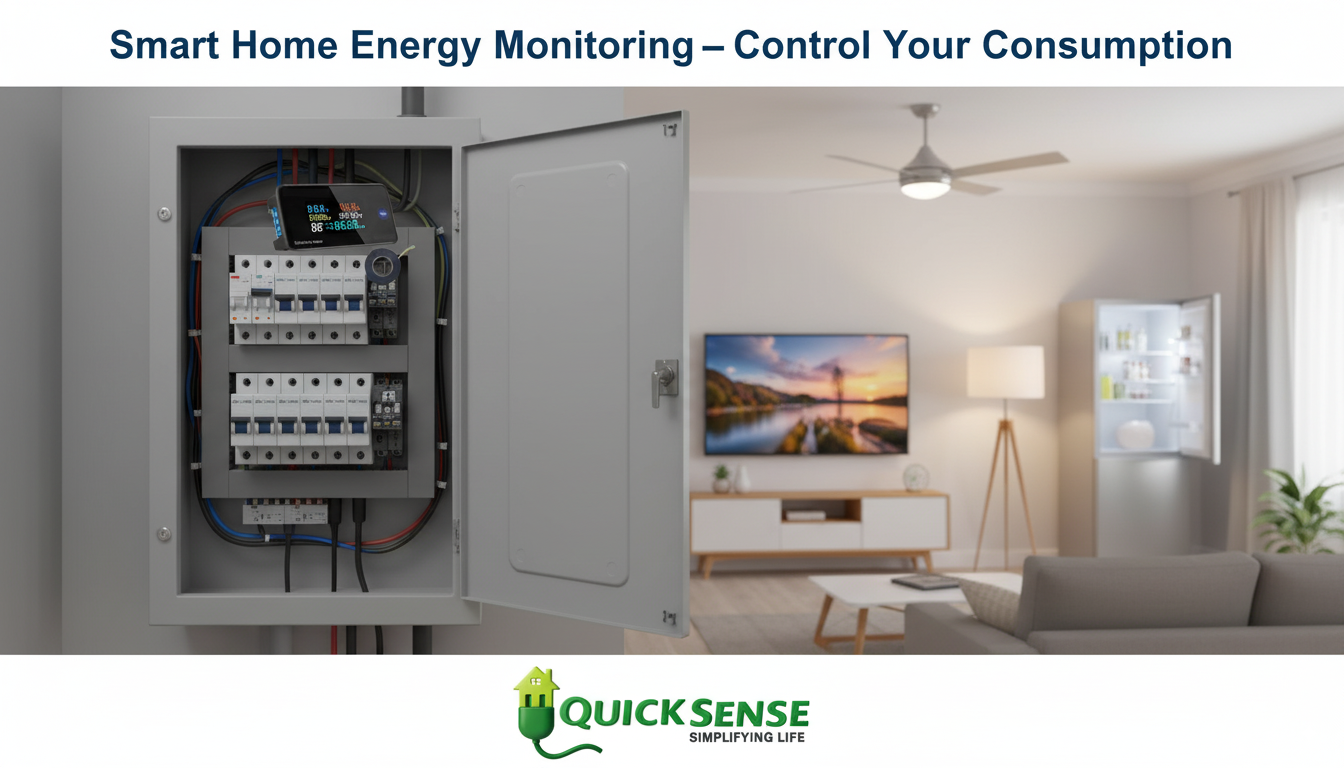

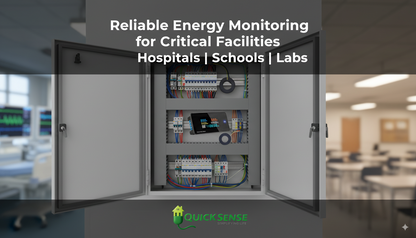

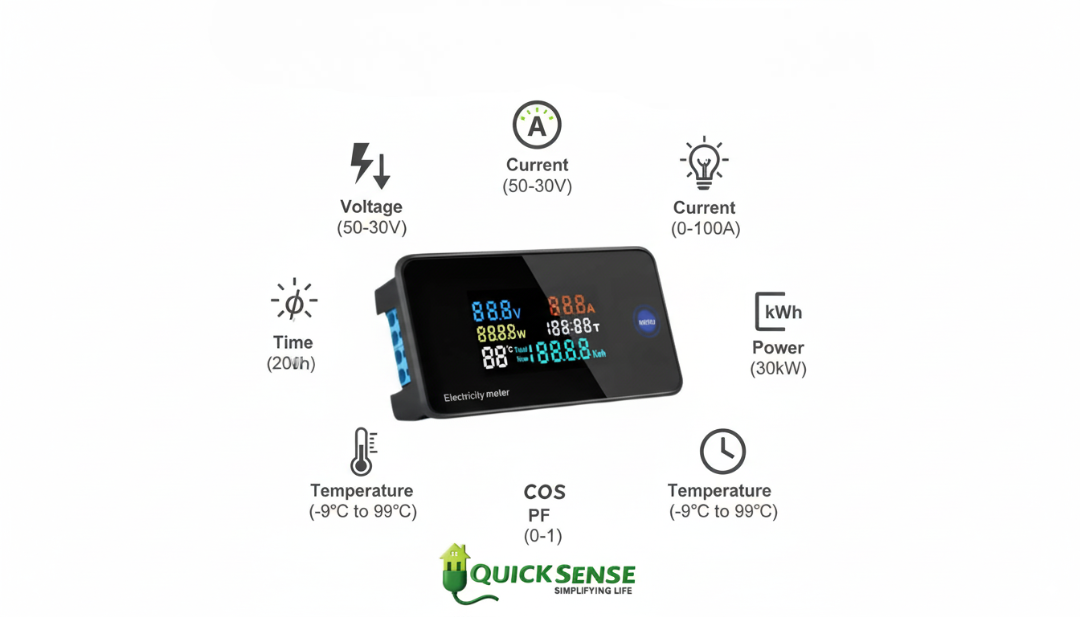

Monitor voltage, current, active power, power factor, energy and temperature with compact DIN-rail convenience. ARM-powered sensing and a non-contact clamp deliver stable readings across 50–300 V and up to 100 A while preventing heat build-up. Backlit LCD and flame-retardant PC housing make installation, night-time reading and panel safety straightforward. Suited for homes, offices and light industrial panels to track consumption, cut waste and spot anomalies quickly.

Model	QS-EM02
Brand	Quick Sense
SKU / Model Number	QS-EM02
ASIN	B0DNFMSR5N
Colour	Black
Material	Flame-retardant PC (Polycarbonate)
Mounting Type	DIN-rail mounting (TS35)
Voltage Range	50–300 V AC (50/60 Hz)
Current Range	0–100 A (via non-contact sensor/clamp)
Power Range	0–30,000 W
Energy Range	0.01–19,999 kWh
Power Factor	0.00–1.00 PF (active)
Temperature Range	-9 °C to 99 °C
Display	Backlit LCD for clear readings in low light
Dimensions (L×W×H)	8.45 × 3.73 × 2.21 cm
Weight	0.50 kg
Frequency Compatibility	50/60 Hz (standard sine wave only, not for square/inverter outputs)

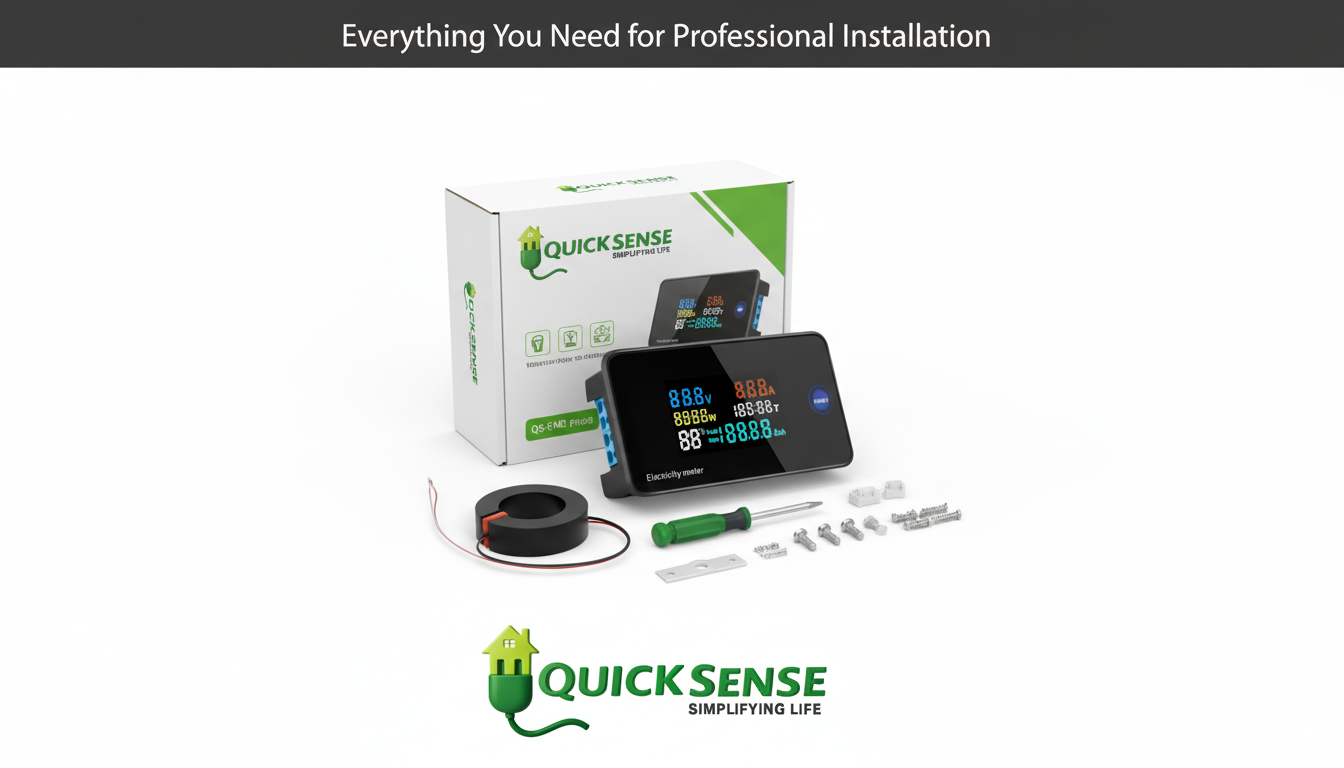

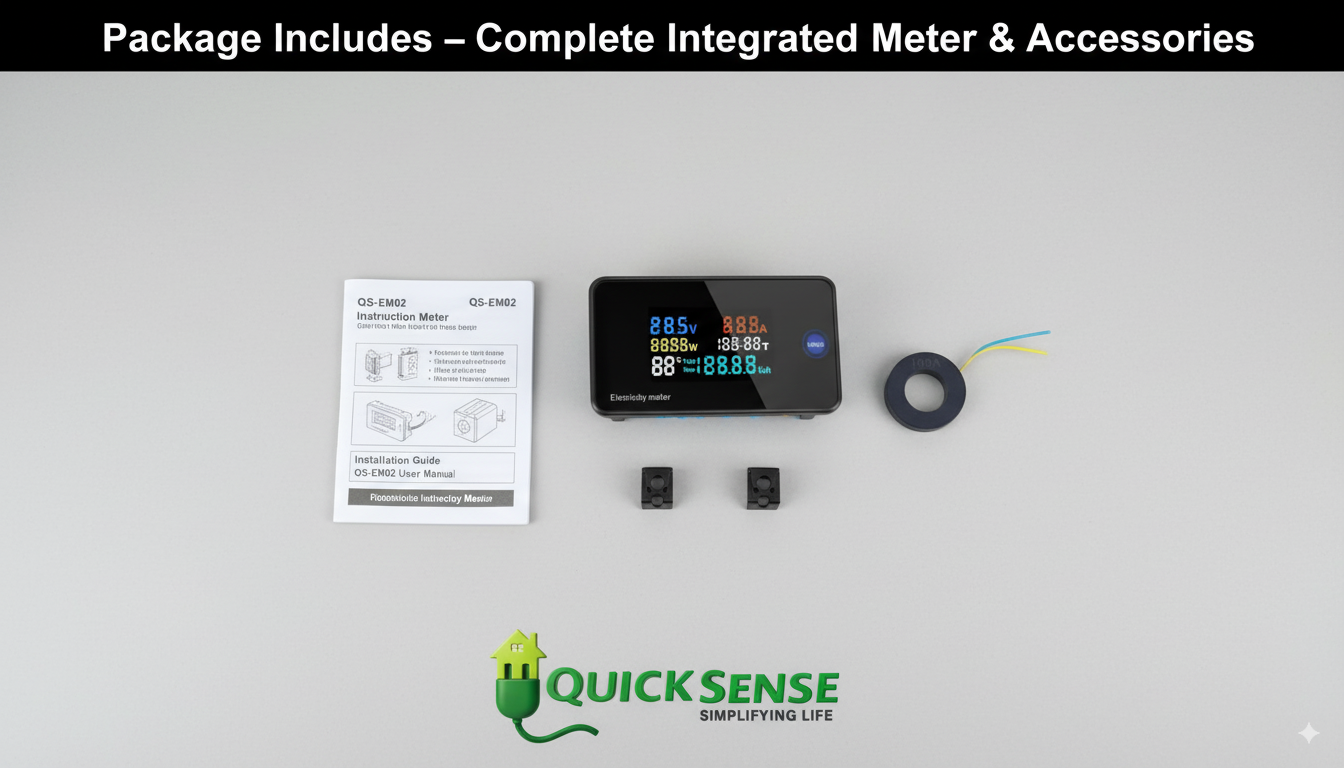

Included Components	Energy meter unit, non-contact sensor/clamp, installation manual
