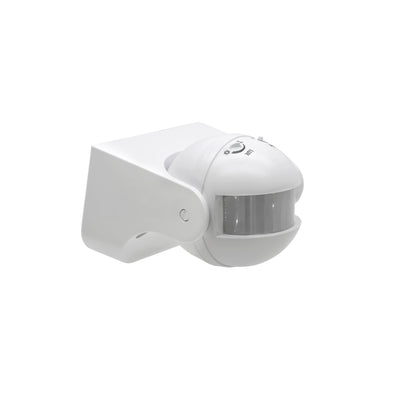

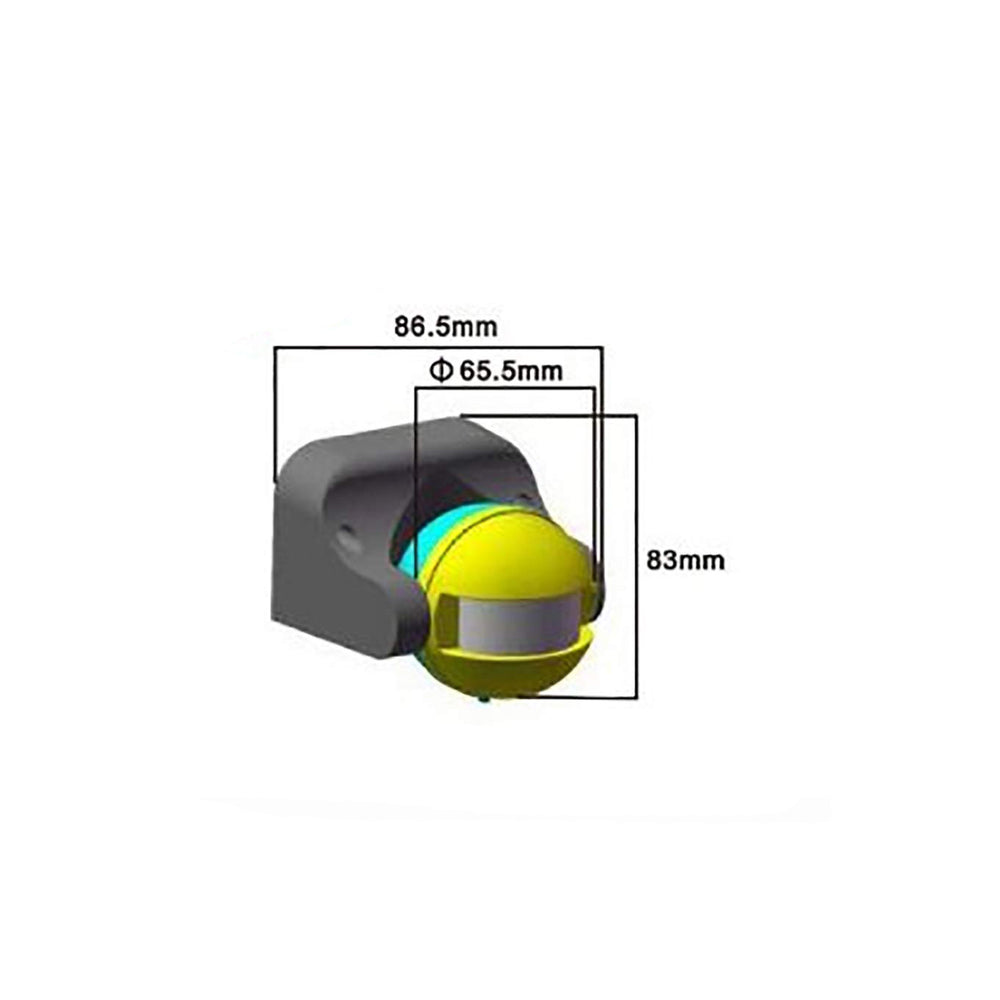

Quick Sense (Qs-09): 180` Wall-Mount PIR Motion Switch , White
This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, energy-saving, practical functions; It has wide detection range made up of up and down, left and right service field; It utilizes human motion infrared rays as control signal sources when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is wide; It has the function of power indication and detection indication.
1.Power source: 110~130V/AC 220~240V/AC
2.Detection range: 180 degree
3.Detection distance: max.12m

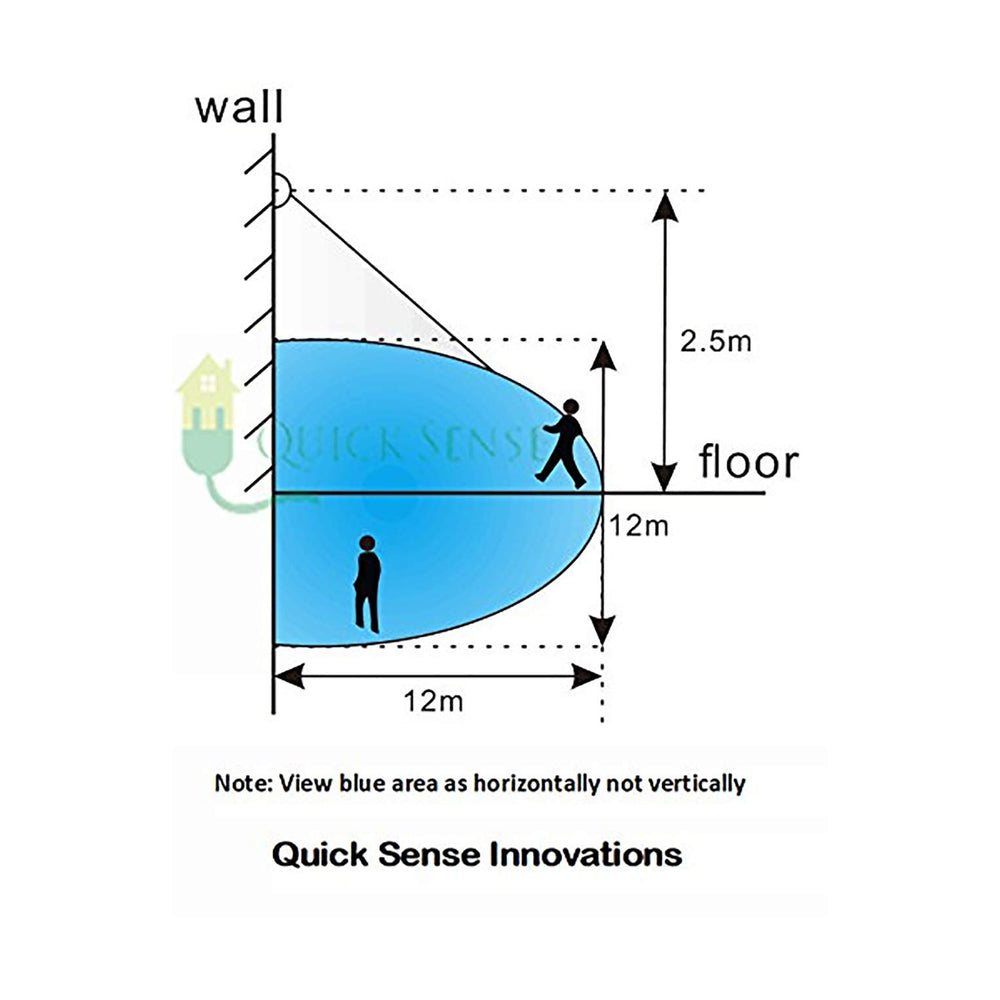

Detection field: The wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in the detection field has great relation with the sensitivity.

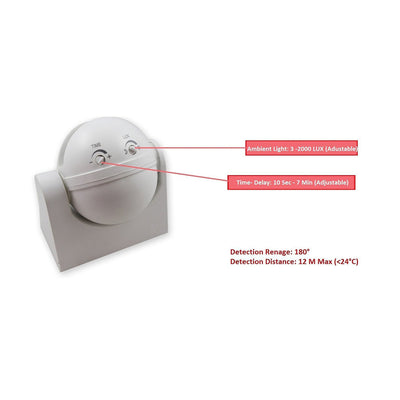

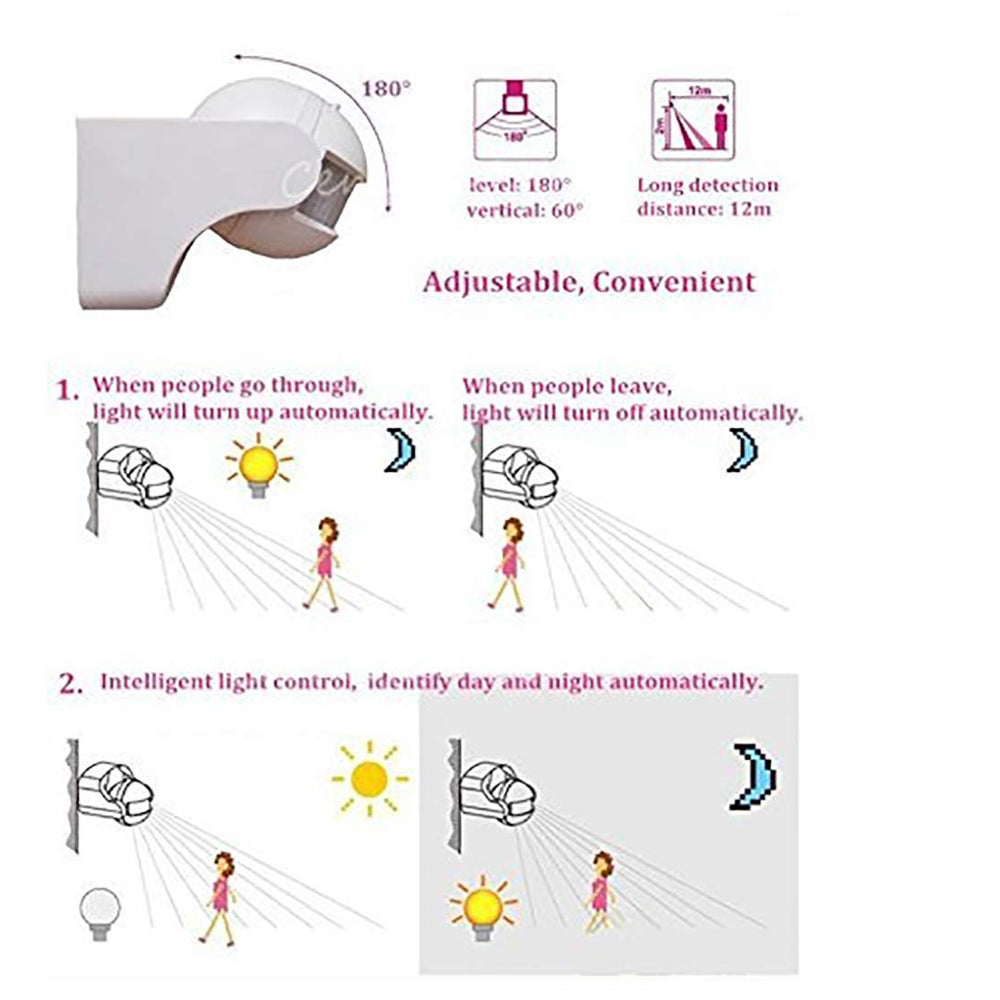

Identify day and night automatically: The ambient light of ST09 could be adjusted according to your desire: when turning to SUN (max), it will work day and night, when turning it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to the testing way.
Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
Time-delay is adjustable: It can be set according to your desire, the minimum is 10sec±3sec, the maximum is 7min±2min.
Shut off the power.
Loosen the screw on the bottom lid, open the wiring hole, pass the wire of power and load through the bottom lid.
Fix the bottom lid with an inflated screw on the selected position.

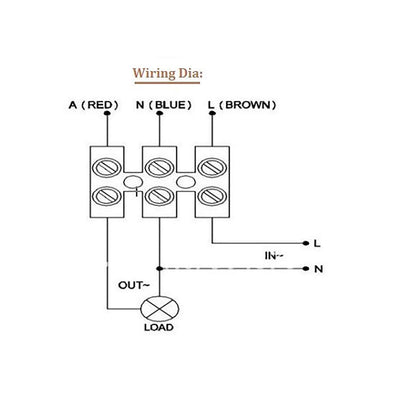

Connect the power and load wire into the connection-wire column according to the connecting figure.
Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.
