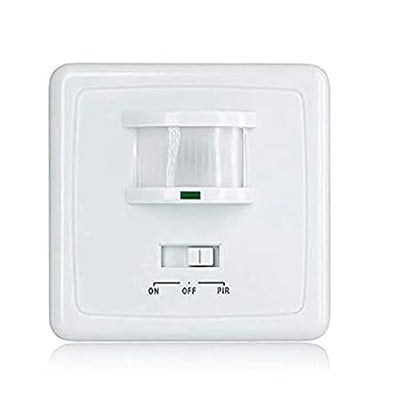

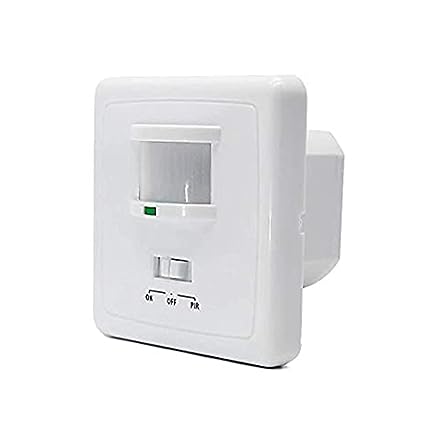

This is a new generation infrared sensor developed by our long-term market forecast and investigation. It has strong stability, it gathers multi-function, practical, good appearance, wide working voltage, convenient installation, detection indication, multi-working mode, etc. It adopts SMT technique. It is accorded with European standard, it is suitable for automatic control for home, hotel and enterprise.
Power source: 90-240V/AC
Power frequency: 50/60Hz
300W Max.tungsten(cosφ=1)(100-130V/AC) 500W Max.tungsten(cosφ=1)(220-240V/AC)
Detection angle: >140°
Light-control: 3LUX~1000LUX (adjustable)
Time setting: 10±3sec~10±2min(adjustable)
Detection range: 10±2m Max (22°C)(adjustable)
Installation height: 0.4m~1.8m
Power consumption: 0.45W (static 0.1W)
Detection motion speed: 0.6~1.5m/s
Sound control sensitivity: 30db~90db(adjustable)
Working humidity: <93%RH
Working temperature: -10~+40°C
➢ Multi-function: It has ON, OFF, light-control, high sensitive sound control, long distance, wide range infrared detection functions;
➢ Practicality: by the light-control it can control the sound-control and the ambient-light when the sensor works. It can work in various ambient-light day and night, it also can work only in low ambient-light; Time setting can be adjusted by yourselves in stipulated range; infrared induction and sound control sensitivity can be controlled by yourselves;
➢ Good appearance: The surface design is facility, comely but not losing generosity, the style is elegance, it
will not have accidented feeling after installation;
➢ Wide working voltage: 90-240V/AC 50/60Hz. You will not be worried when you go all over Europe carrying it;
➢ Convenient installation: Two-installation modes for your selection. It can be installed in circular or quadrate junction box; you could fix the sensor with two screws on the junction box in circular one, also fix it with special installation shelf on sensor. In a word, whether the junction box installation orientation is true, it makes the installation flatly;

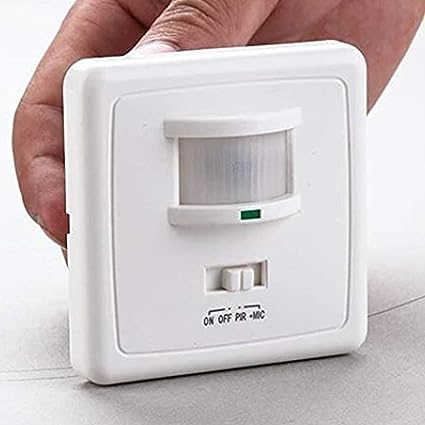

➢ Multi-working mode: You can select ON, OFF, infrared detection, infrared detection +sound control mode,
if you select infrared detection + sound control mode, the lampwill be on automatically when you knock at the door or say “I am coming back” at night you come back home, it will make your home warmer and more romantic.
➢ Shut off the power.

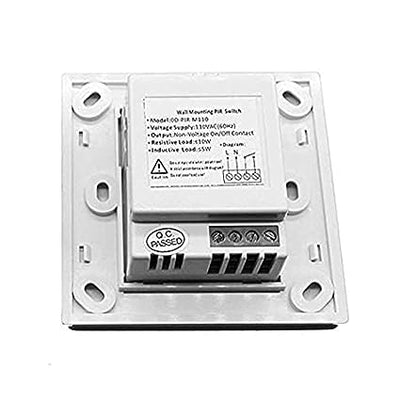

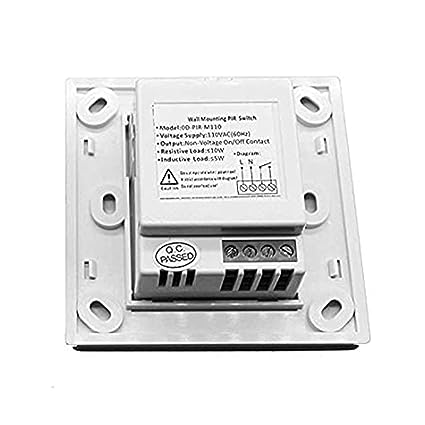

➢ Loosen the connection column on the bottom of sensor, plug the wire into connection hole, tighten the screws.
➢ Unload the surface of sensor, connect the sensor into connection box.
➢ If you want to install it in quadrate connection box, penetrate the setscrew into installation hole, block on radiator to aim at the installation hole on connection box, then tighten the screw; if you want to install it in circular one, you can use the same way as the quadrate, also adjust the sensor’s position, tighten the
setscrew on surface, then the fixing arm will open automatically, fasten the connection box.
➢ Switch on the power then test it.
