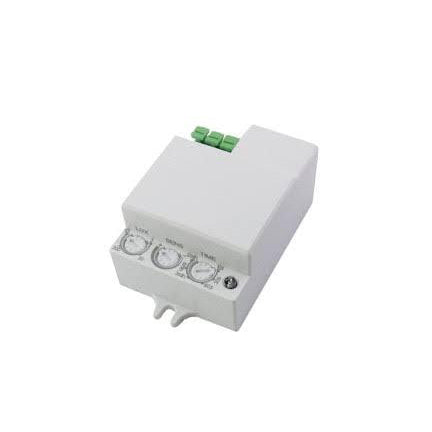

Quick Sense(QS-M5): Mini Microwave Sensor 360/180 degree

The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, It can start the load at once and identity automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.

Specifications

Power sourcing: 220V/AC-240V/AC
Detection Range: 360/108
Power Frequency: 50Hz Detection
Distance: 5-15m (radius) adjustable
Ambient Light 3-2000LUX (Adjustable)
HF system:5.8GHz CW radar, ISM band
Transmission Power: <10mW
Rated Load: 1200W
                      300W
Power consumption: approx 0.9W
Detection Motion Speed: 0.6-1.5m/sec

Download QS-M5 Manual
