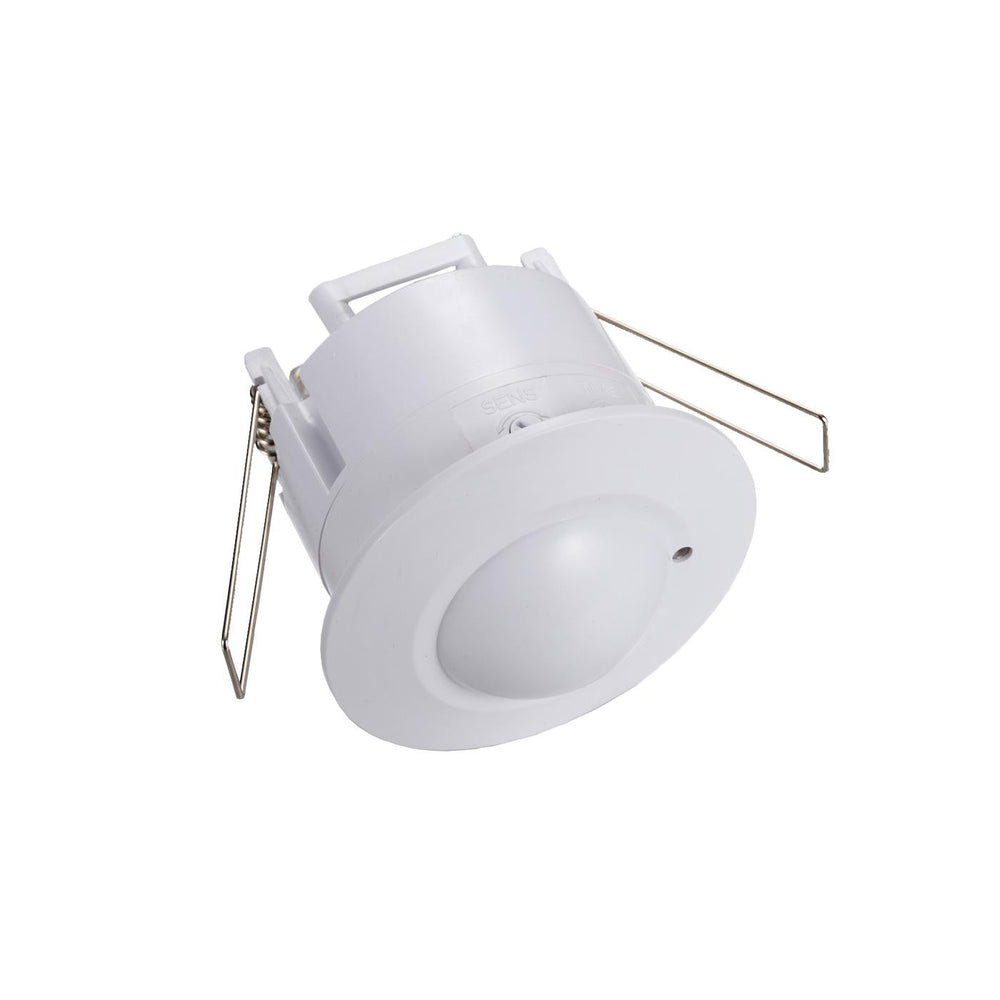

Quick Sense(Qs-M6): Ceiling Microwave Sensor 360 degree(FLUSH MOUNT) - Quick Sense Innovations
Quick Sense(Qs-M6): Ceiling Microwave Sensor 360 degree(FLUSH MOUNT) - Quick Sense Innovations
Quick Sense(Qs-M6): Ceiling Microwave Sensor 360 degree(FLUSH MOUNT)
Quick Sense(Qs-M6): Ceiling Microwave Sensor 360 degree(FLUSH MOUNT) - Quick Sense Innovations

Quick Sense(Qs-M6): Ceiling Microwave Sensor 360 degree(FLUSH MOUNT)

Rs. 600.00 Rs. 2,000.00

  • The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.

    SPECIFICATION:
    Power Sourcing: 220-240V/AC

    Power Frequency: 50Hz
    HF System: 5.8GHz CW radar, ISM band

    Detection Range: 360°

    Ambient Light: <3-2000LUX (adjustable)

    Installing Height: 1.5~3.5m
    Rated Load: 1200W (incandescent lamp)

    Transmission Power: <10mW
    300W (energy-saving lamp)

    Time-Delay:min.:10sec±3sec

    Power Consumption: approx 0.9W Max.: 12min ± 1min

    Detection Distance: 1-8m (radius) adjustable

    Detection Motion Speed: 0.6~1.5m/s



    Download QS-M6 Manual
