Keep your gadgets smiling by protecting them from harmful voltage swings with compact DIN-rail design and 85–300 V coverage. The bright LCD displays live voltage, current, active power and total kWh for easy, accurate monitoring. Adjustable auto-reconnect (1–512 s) plus 1–63 A overload protection cuts supply during faults and restores it when safe. Screw terminals and standard DIN mounting make installation fast and service straightforward.

Model	QS-VP02-N
Brand	Quick Sense
Current Rating	1–63 A
Operating Voltage Range	85–300 V AC

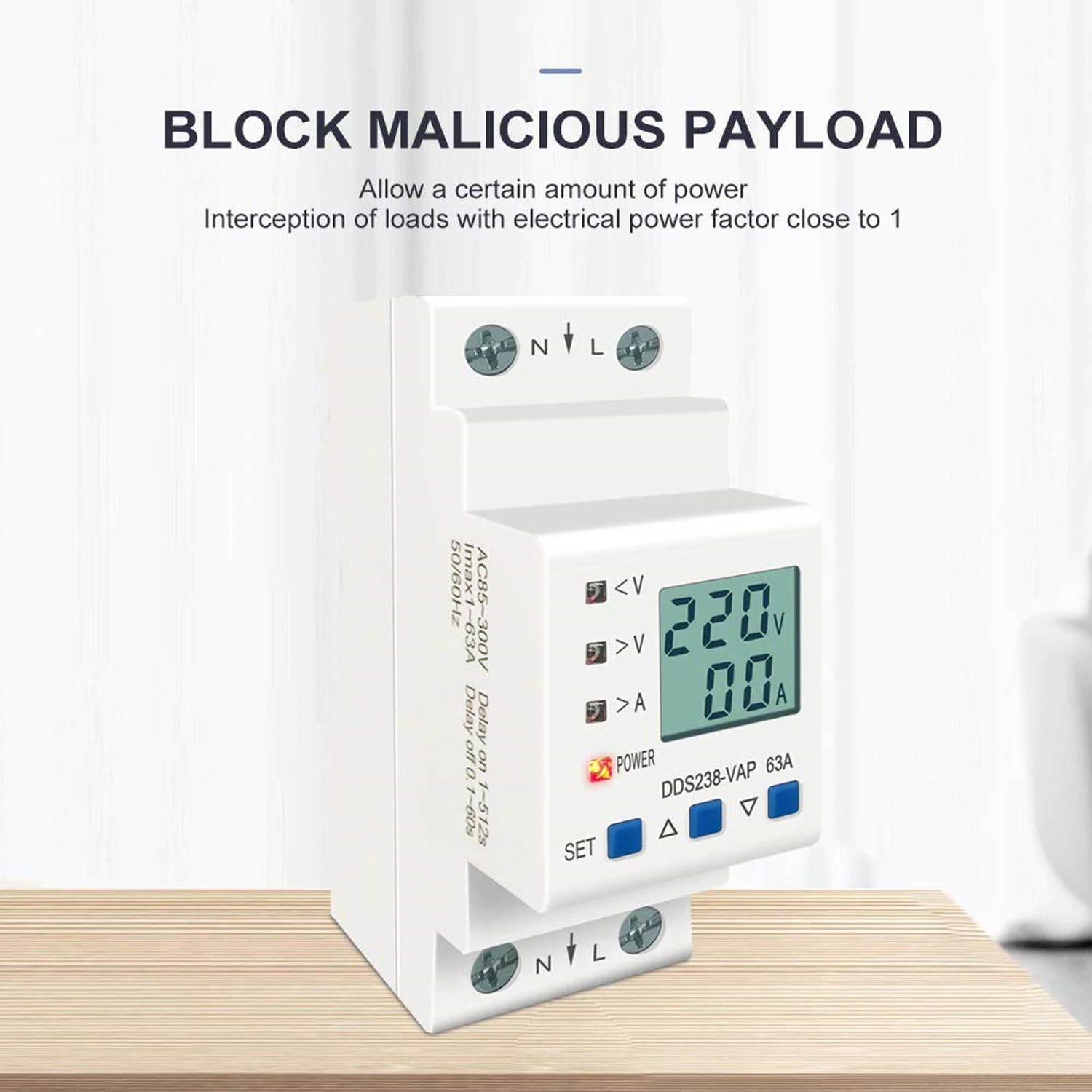

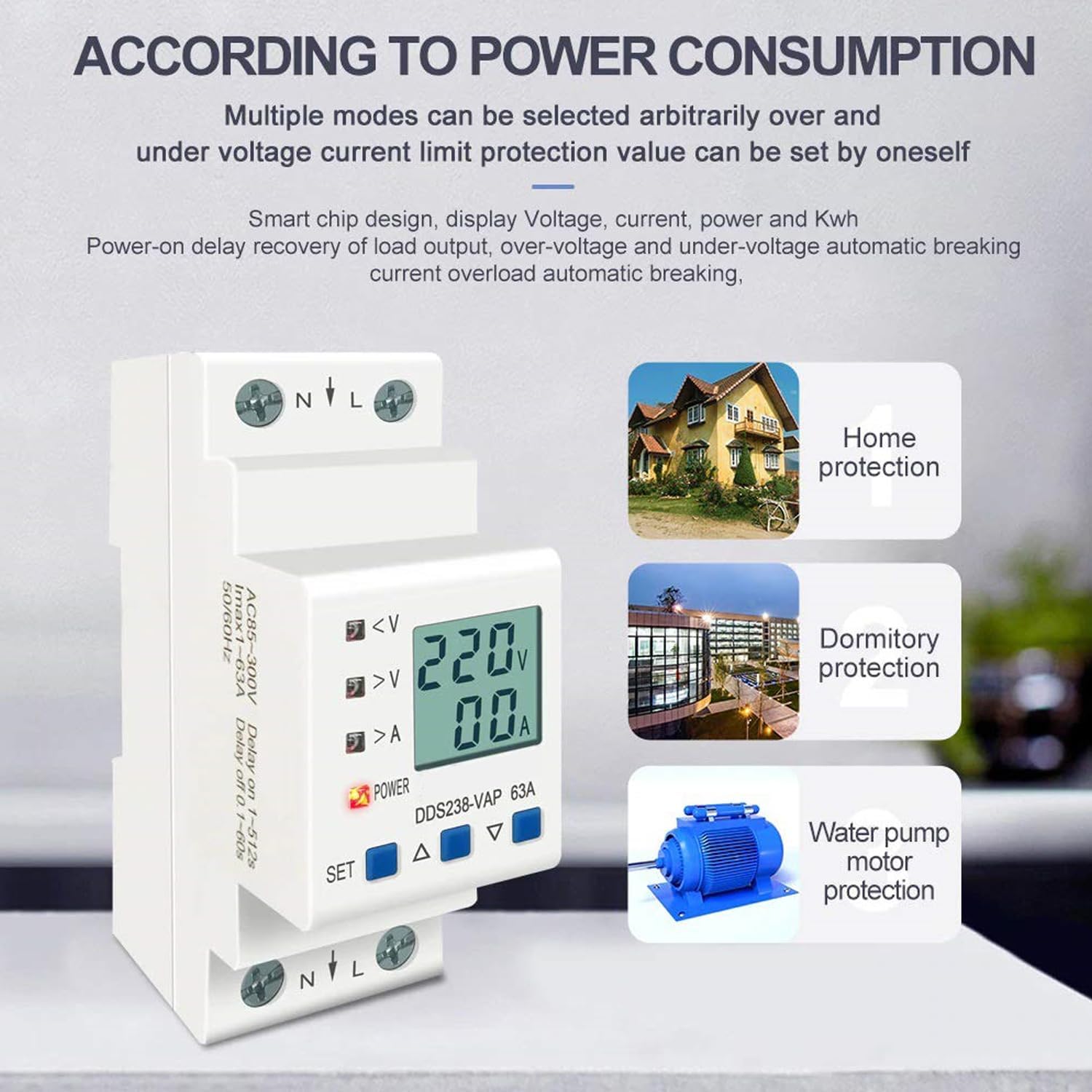

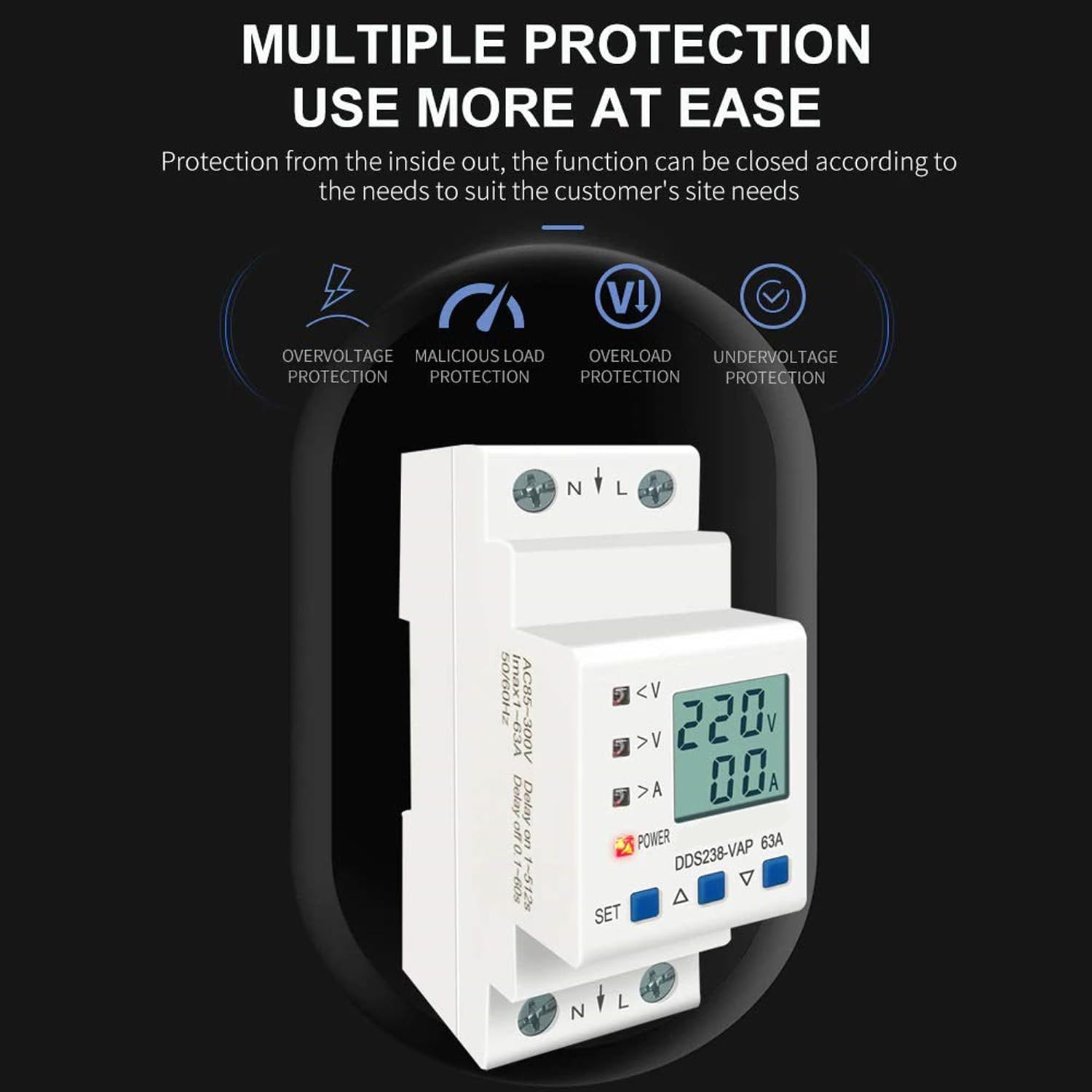

Protection Types	Over-voltage, Under-voltage, Overload protection
Auto Reconnect Delay	Adjustable 1–512 seconds

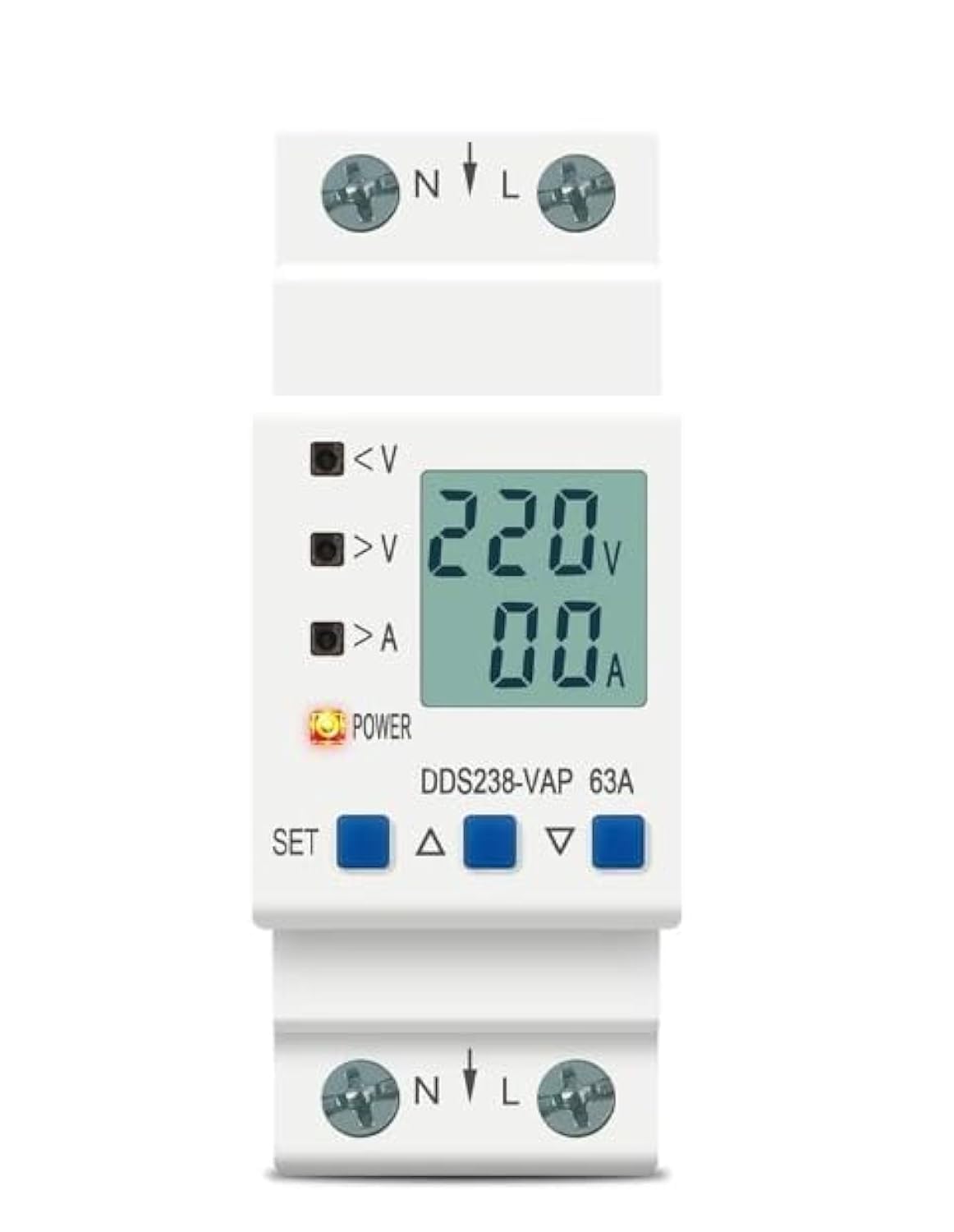

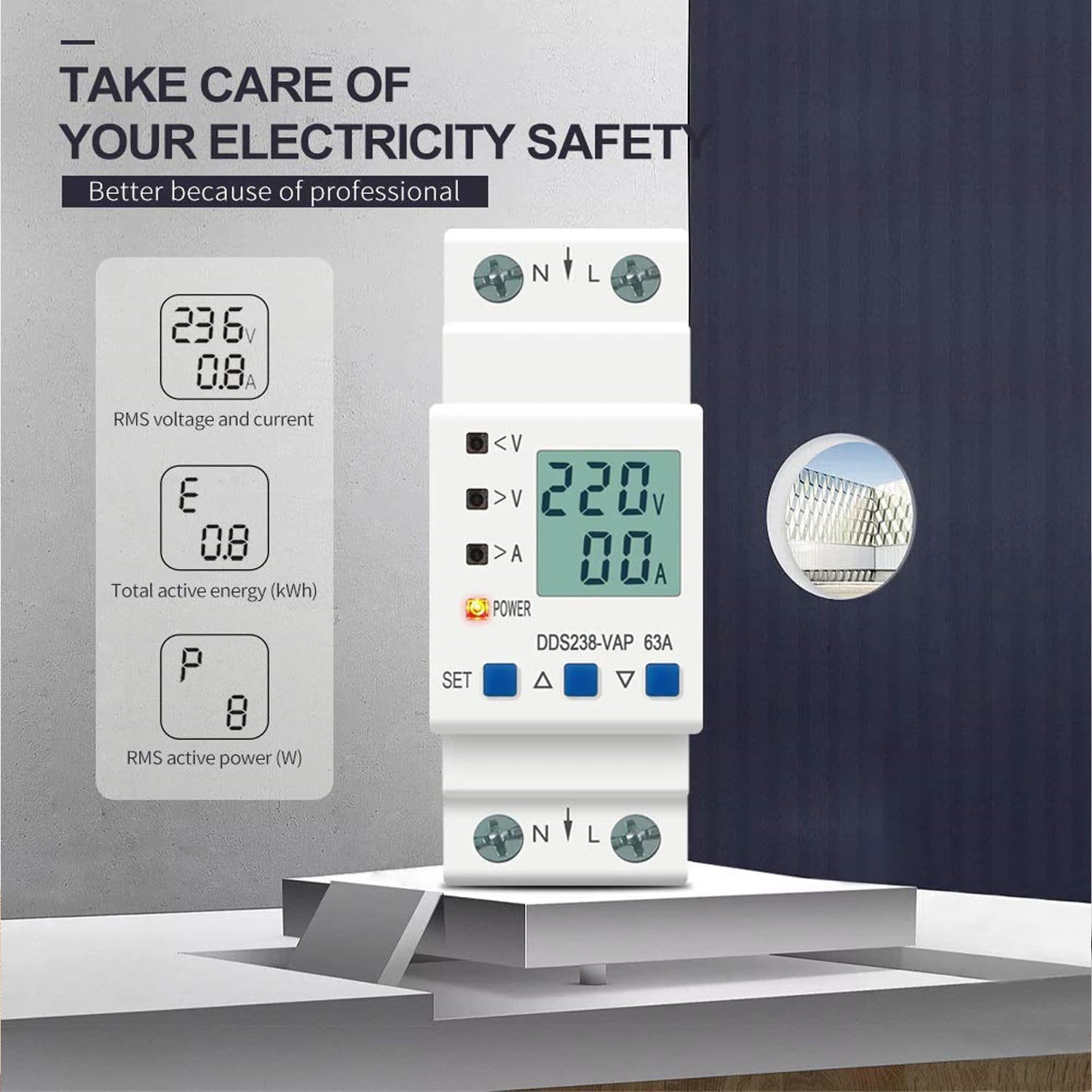

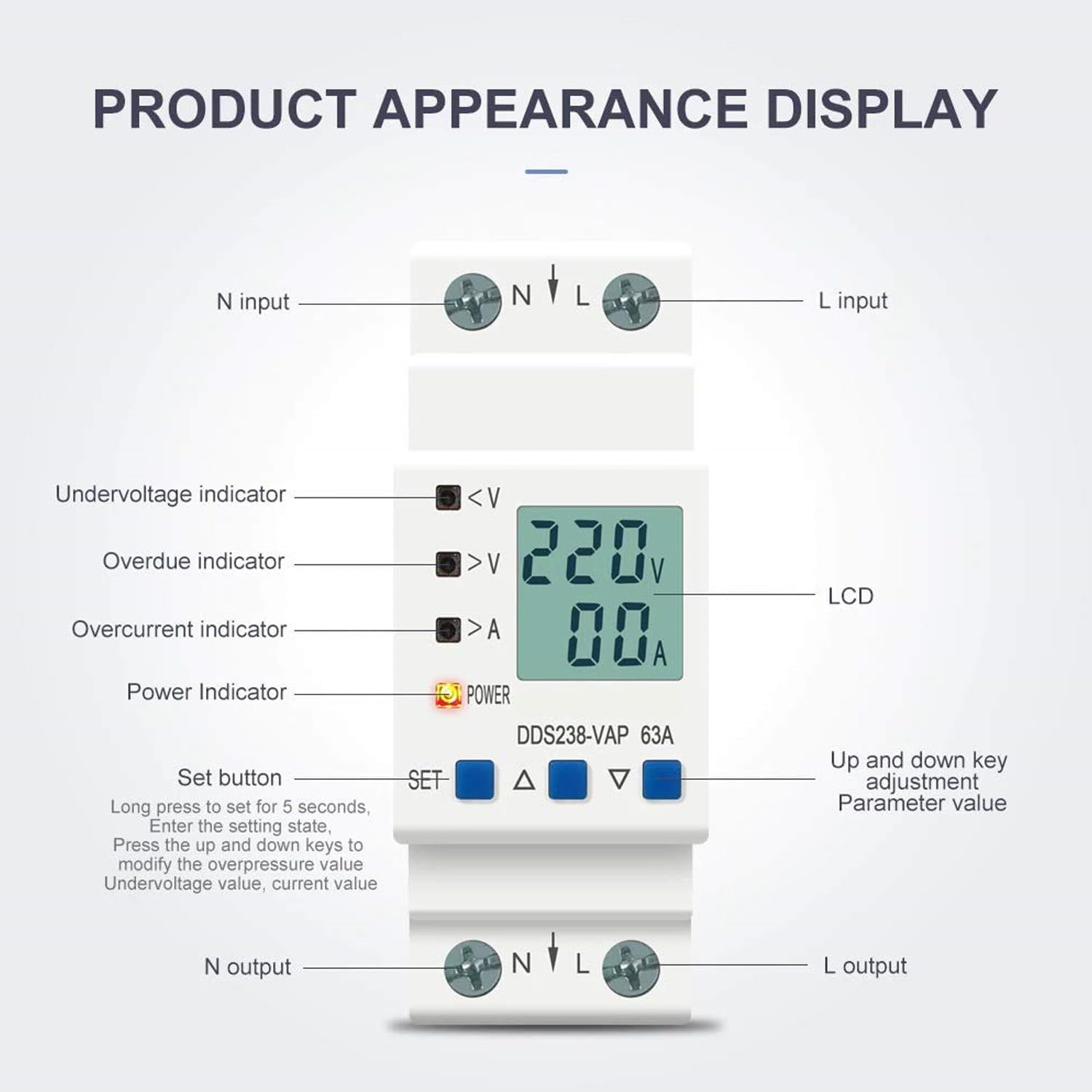

Display	Backlit LCD — shows voltage (V), current (A), active power (W), total energy (kWh)

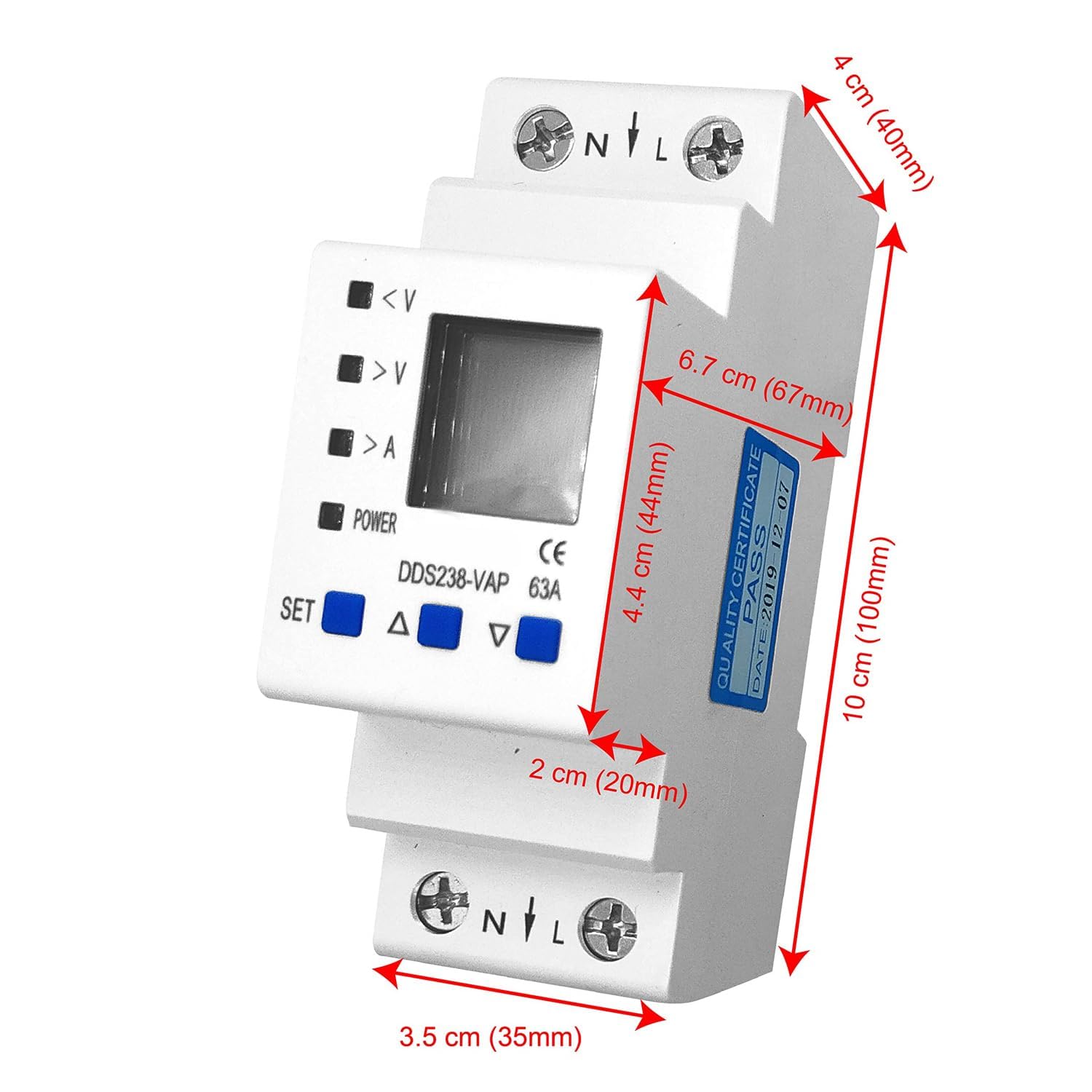

Mounting Type	Standard DIN rail (DIN35)
Terminal Type	Screw terminals for input/output connections
Certifications	CE, RoHS
