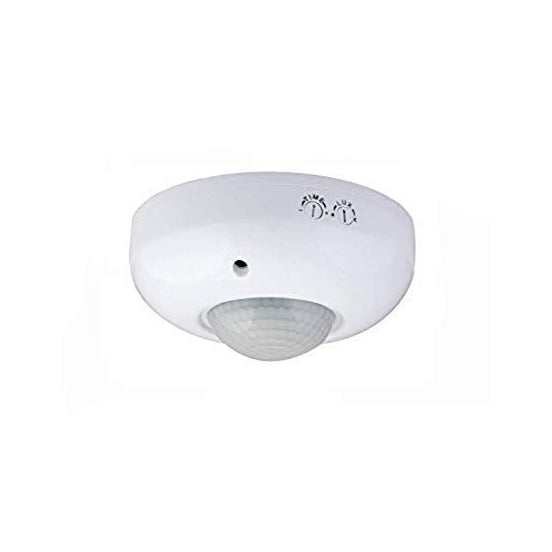

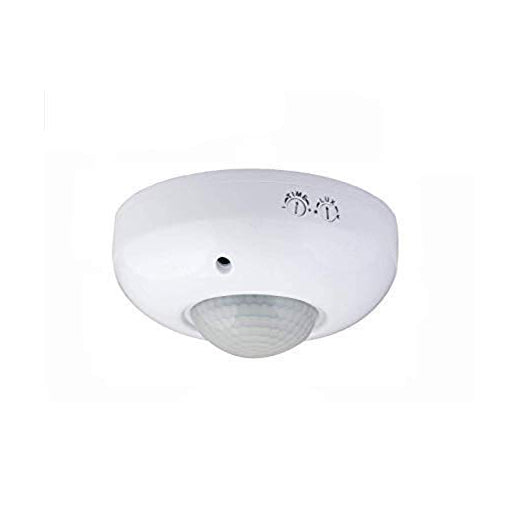

Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)
Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)

Quick Sense(Qs-07): 360 Degree 220V Ceiling-Mount White PIR Motion Sensor Switch with LUX Sensor In-built Energy Saving Sensor, LUX Adjustment, Time Adjustment, Automatic Sensor (Qs-07)

Rs. 620.00 Rs. 1,500.00

The product is a new saving-energy switch; it adopts good sensitivity detector, integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion infrared rays. When one enters the detection field, it can start the load at once and identify automatically day and night; its installation is very convenient and its using is very wide. It has functions of power indication and the detection indication

Specification:

    1. 1.Voltage:220V-240V/AC

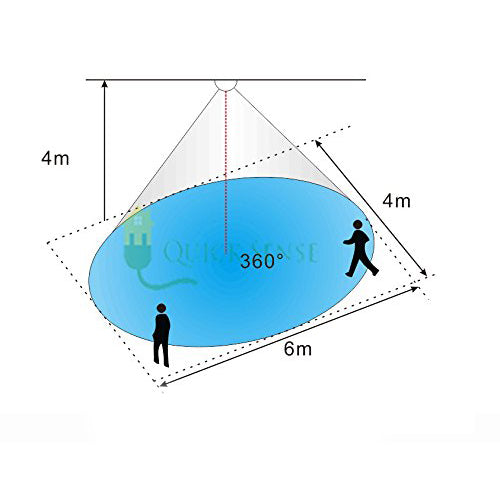

    1. 2.Detection range:360 degree
    1. 3.Rated load: 1200W
    1. 4.Detection distance:6m
    1. 5.Time-delay: 10sec to 7min (preferable time 60sec to 7 min)

Function

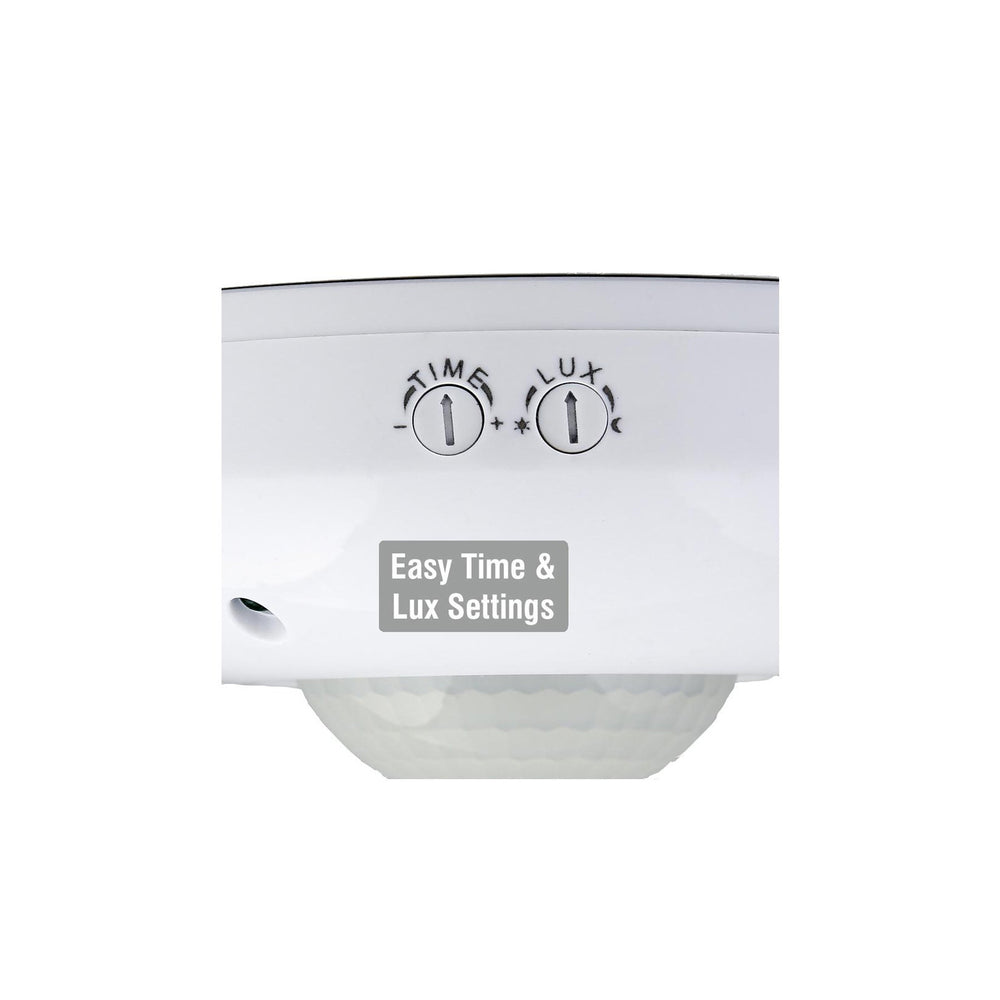

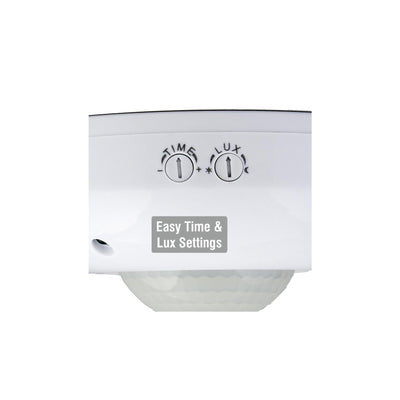

Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work inthe ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.

Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.

Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec(preferable time 60sec). The maximum is 7min±2min.

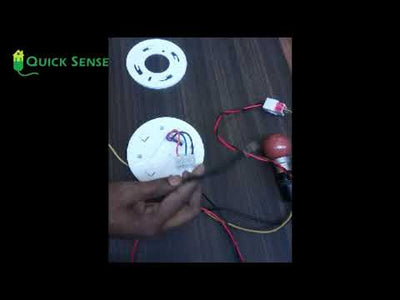

Installation:

Switch off the power.

Turn clockwise the bottom-stand and take off it. The power wire cross the hole in the middle of bottm-stand.

The bottom-stand is fixed on the selected position with inflated screw.

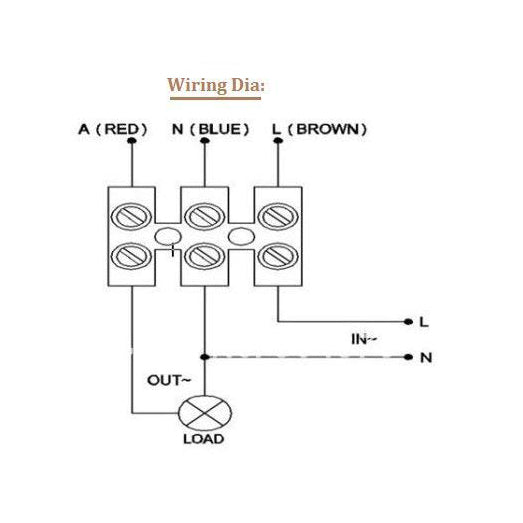

Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.

The sensor aimed at the mouth of bottom-stand and turned anti-clockwise.
